Tarot Flyover 320kv Red Tl4X005 Black Brushless Motor

  • Tarot Flyover 320kv Red Tl4X005 Black Brushless Motor
  • Tarot Flyover 320kv Red Tl4X005 Black Brushless Motor
  • Tarot Flyover 320kv Red Tl4X005 Black Brushless Motor
  • Tarot Flyover 320kv Red Tl4X005 Black Brushless Motor

Tarot Flyover 320kv Red Tl4X005 Black Brushless Motor

    Packaging: export carton
    Productivity: 10000piece/year
    Brand: Hobbywing
    Transportation: Ocean,Land,Air,Express,Others
    Place of Origin: China
    Supply Ability: 1000pieces/week
    Certificate: CE
    HS Code: 8802200090
    Port: Qingdao,Shanghai

Basic Info

Model No.: TL4X005

Product Description

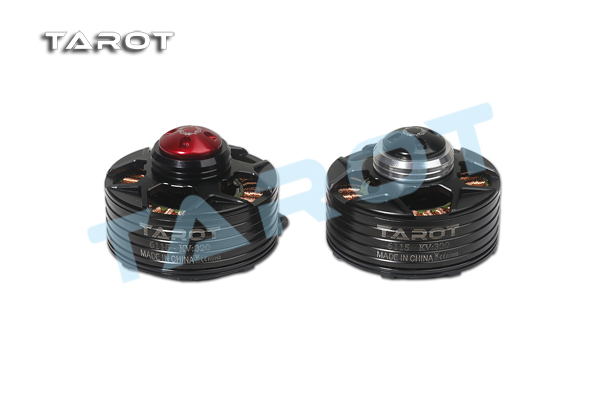

Tarot Motors Product Description:
6115 / 320KV high efficiency Brushless Motor designed for self-locking multi-rotor unmanned aircraft design, using two-color front and rear rotor shroud distinguish applicable to TAROT X4 aerial vehicle (TL4X001) and other multi-axis aircraft. Using high-precision CNC machining full production, outside Flat smooth surface trace, excellent balance. The new design of efficient turbofan superstructure, providing powerful airflow, rotor with high magnetic NdFeB refined stator reinforced with high-strength epoxy pressure high temperature protection, motor upper and lower lid with large size high-speed precision bearings with low friction torque, low power consumption, impact resistance, high speed when the instantaneous radial support and other advantages. 6115 / 320KV brushless motor has passed strict new generation of dynamic, static, magnetic properties, magnetic temperature demagnetization loss, exercise vibration, noise, load performance engineering technology demonstration. Continuation of the brushless motor inherited TAROT: long life, high efficiency, low power consumption, low noise, superior control and stability characteristics.

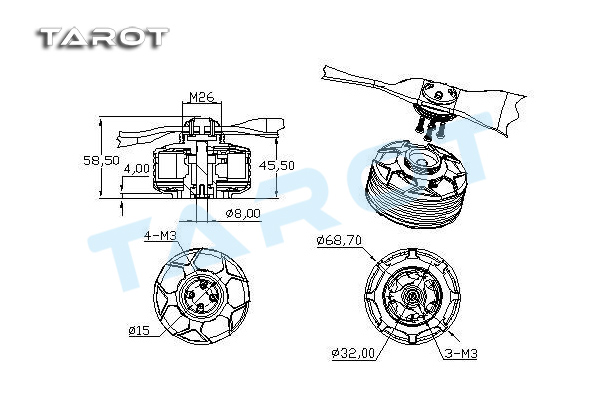

6115 / 320KV brushless motor with high performance dynamic balance, and every single motor ship before the whole system have been detected with high precision balancing test to ensure stability when the motor is running. Motor base for multiple sets of mounting holes (holes pictured), compatible with mainstream rack-mount on the market.


Tarot Drone Parts

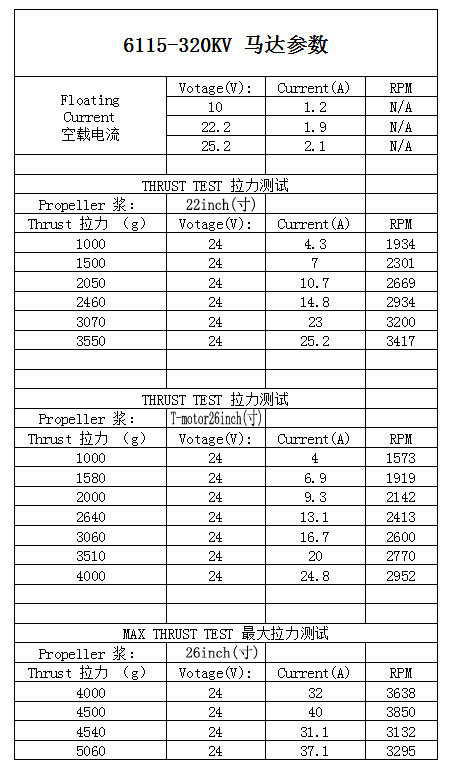

Tarot Motor Product parameters:
Motor diameter: 68.8mm
Stator diameter: 61.5 mm
Stator end Thickness: 15.0 mm
Stator end number: 24N
Motor Poles: 22P
Diameter: 0.31mm
Per volt speed: 320 RPM / Volt
Empty annexed 22.2V Current: 2.0 Amps
Motor resistance: 126 mΩ
Motor Weight: 312 Grams
Motor Length: 45.5 mm
Motor axis full length: 36.0 mm
Motor mounting pitch: 32MM
Tarot Brushless Motor Product Specifications:
6015 Self-locking UAV motor × 1 (68.7 × 58.5MM) 315G
Self-locking lid × 1 (31.5 × 8MM) 8G
Black Shroud × 1 (25 × 12.5MM) 6G


Tl4X005 (1)Tl4X005 (2)Tl4X005 (3)
