High Quality DC Brushless Motor Peristaltic Pump, Brushless Motor Peristaltic Cement Pump, DC Brushless Motor Peristaltic Cement Pump Suppliers in China

Home > Products > Brushless Motor > 6000ml Flowrate DC Brushless Motor Peristaltic Cement Pump

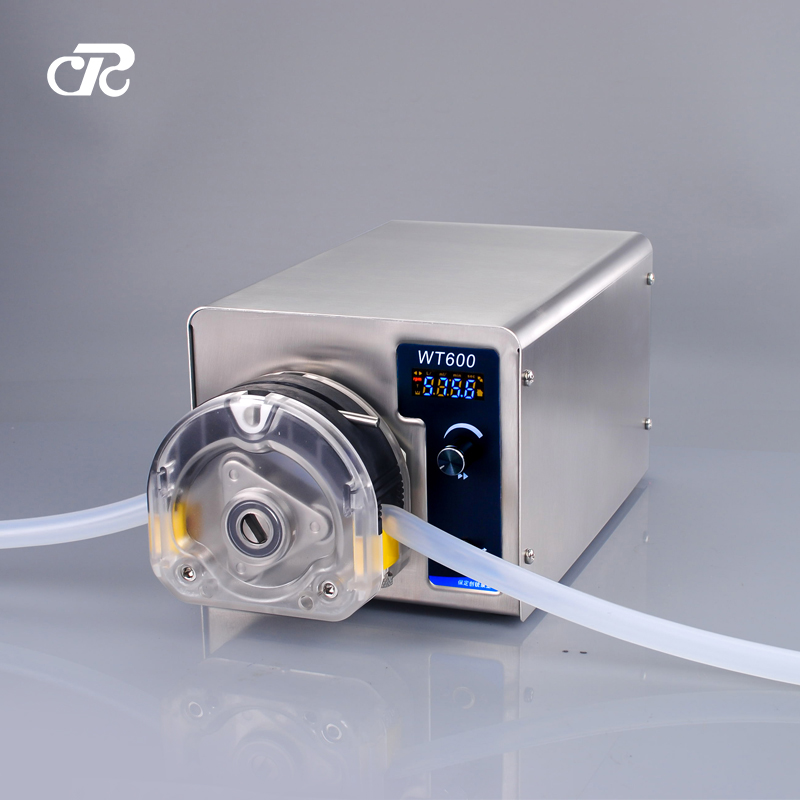

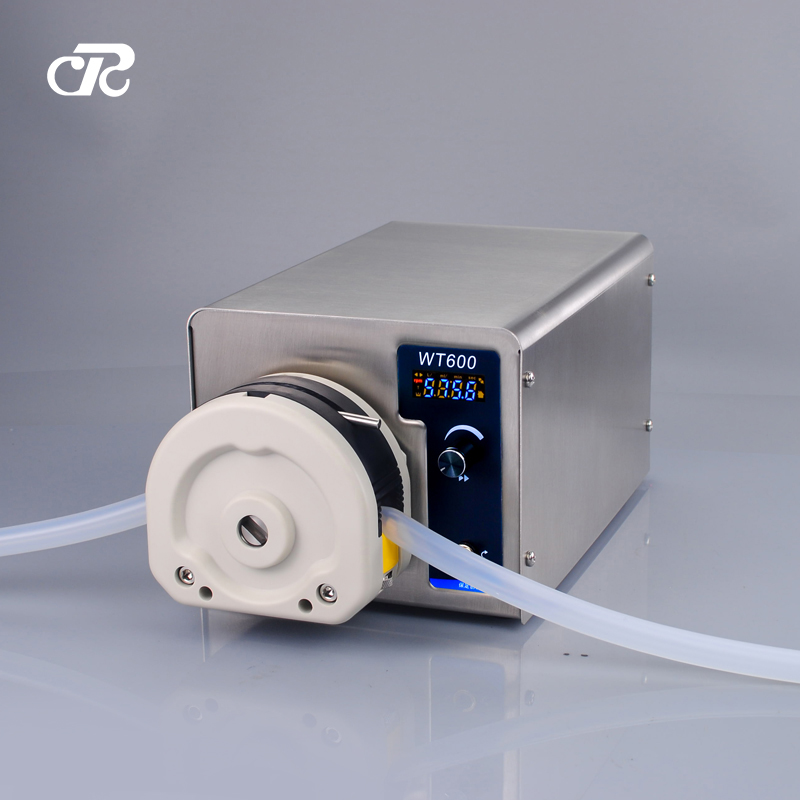

6000ml Flowrate DC Brushless Motor Peristaltic Cement Pump

  • 6000ml Flowrate DC Brushless Motor Peristaltic Cement Pump
  • 6000ml Flowrate DC Brushless Motor Peristaltic Cement Pump

6000ml Flowrate DC Brushless Motor Peristaltic Cement Pump

    Unit Price: 600 USD
    Min. Order: 1 Set/Sets
    Packaging: DC Brushless Motor Transfer Peristaltic Pump 1. The package contains a peristaltic pump and its accessories. 2. Carton and foam packaging can protect the safety of the product during transportation. 3. If you have special packaging needs, please contact u
    Productivity: 1000SETS/MONTH
    Brand: CR
    Transportation: Express
    Place of Origin: China
    Supply Ability: Less than 3 sets within 7 days
    Port: Beijin,tainjin,shanghai

Basic Info

Model No.: WT600/KZ25

Product Description

6000ml Flowrate DC Brushless Motor Cement Peristaltic Pump


We have experience in developing custom solutions that meet your specific needs. Bring us your idea, issue, concept and we’ll support you in the design of the appropriate solution.

Dc Motor Peristaltic Pumpwt600 Kz25 2Dc Motor Peristaltic Pumpwt600 Kz25 1




Industrial Peristaltic Pump Model: WT600/KZ25, Peristaltic Pump Head is KZ25

Dosing Pump is with Speed range: 30-600 rpm

Max Flow : 6000 ml/min

Max Number of Channel: 2*kz25 4*YZ15

Peristaltic Dosing Pumps are powered by Power supply of AC110V or AC220V

Basic type liquid constant peristaltic pump with Flow reversible 304sss housing prolong pump life time.

Good electromagnetic compatibility, ensure stable and reliable operation

Reactor Membrane filtration Pilot test Peristaltic Dosing Pump CE certified product based on request.



Medium Flow Peristaltic Pump Liquid Transfer Peristaltic Perfusion Hose Pumps is WT600 with KZ25 head pump.

Basic type liquid constant peristaltic pump with Flow reversible 304sss housing prolong pump life time. Good electromagnetic compatibility, ensure stable and reliable operation CE certified product based on request.




Parameter Model : WT600

Noted : The rpm display is the defaulted mode. If you need flow display, pls contact our sales to customized the program.

Speed

30-600rpm

Speed resolution

1rpm

Max Flow rate

6000ml/min

Display

4-LED display

Speed control model

Rotary encoded switch control speed

Power supply

AC220V±10%(standard) or AC110V±10%(optional)

External control

Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )




Tube specifications for the pump head KZ25 (black is defaulted)

Noted : The standard tube which will come with the pump is model 36#, If you need other tube model , pls contact our sales in advance.

Tube model

ID(mm)

OD(mm)

Standard material

Flow with 600rpm(ml/min)

36#

9.6

14.4

Silicon tube

6000

35#

7.9

12.7

Silicon tube

4200

24#

6.4

11.2

Silicon tube

3000

15#

4.8

9.6

Silicon tube

1800

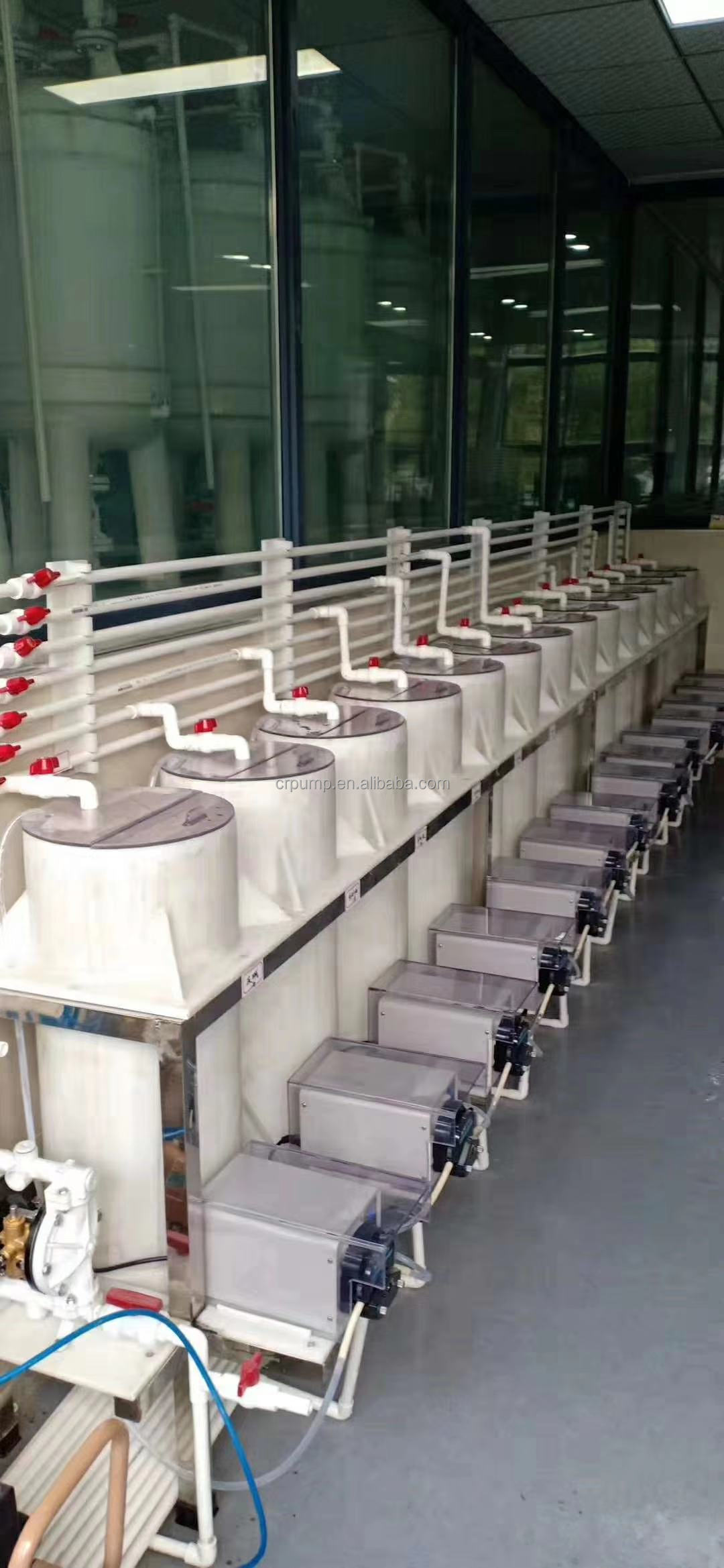

Peristaltic pump application 1 Membrane filtration

Peristaltic Pump Application


Peristaltic pump application 1 additive adding

Peristaltic Pump Application





Why choose this model for your application?

1, Easy operate only need to power on, then you can use it

2, Easy load pump head, you can install and change the tube fast.

3, If you want to change the flow, only need to rotate the control knob on the panel.

4, Easy to control the direction by the switch on the panel

5, 4-Led display the current speed and work status

6, Support Multiple channels work, Which can meet your application to transfer several liquids at the same time.

Order Guide

How to choose the suitable pump for your application ?Can you first to confirm some details as below :

1, What’s Flow rate you need ? ( )ml/min 2, How many channels you need?( ) 3,What kind of liquid you will dose ?is it corrosive ? ( )

Noted:

The defaulted model we will send is WT600KZB21 or WT600KZB11.

Order number

Model

Pump head

Power supply

Channel number

Max Flow

WT600YZ1B21

WT600

YZ1515x(black)

AC220V

1

2280ml/min

WT600YZ1B11

AC110V

1

WT600YZ1B22

AC220V

2

WT600YZ1B12

AC110V

2

WT600YZ2B21

WT600

YZ2515x

AC220V

1

1740 ml/min

WT600YZ2B11

AC110V

1

WT600YZ2B22

AC220V

2

WT600YZ2B12

AC110V

2

WT600KZB21

WT600

KZ25(black)

AC220V

1

6000 ml/min

WT600KZB11

AC110V

1

WT600KZB22

AC220V

2

WT600KZB12

AC110V

2

Packing list

1

Pump order number :WT600KZB21

2

Silicon tube:36# 2 meters

3

Power plug

4

User manual

Weight

8KG

CTN MEAS

39*25*25CM
