High Quality Offal Pump Used in Slaughterhouse, Chicken by Products Pump, Viscera Pump in Poultry Processing Plant Suppliers in China

Home > Products > Air Pump Motor Group > Pump system used in slaughterhouse

Pump system used in slaughterhouse

  • Pump system used in slaughterhouse
  • Pump system used in slaughterhouse
  • Pump system used in slaughterhouse
  • Pump system used in slaughterhouse

Pump system used in slaughterhouse

    Payment Type: L/C,T/T,D/P
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: pollywood box
    Transportation: Ocean,Land
    Port: Shanghai

Basic Info

Model No.: DGB-350

Product Description

Overview

CONNECT pump system is used to transport the material in poultry processing plant, especially for offal, and other by-products or waste transfer to other working rooms or outside of slaughterhouse. The character for this pump is no need water diversion or air source. The material is separately transported with mechanical transmission, so there is no leakage or break. And the pump don`t have shaft sealing liquid, which greatly extend the service life time. This pump system is used in food plants for transport small material and wastes.


Model:DGB-350

Specification:1631*821*1062mm Diameter of pump: 350mm

Motor reducer:1.5kw

Voltage:triple phase 380V 50Hz


Working Principle

Motor and reducer drives the diaphragm reciprocating movement through the connecting rod, and cause the pump cavity volume change, forcing the import and export of two one-way valves are alternately open and close, and the water and material constantly suction and discharge. The pump should working with water as the media to transfer material, the water is recycling used.


Main Basic parameters



Suitable used for transport: poultry by-production like gizzard, heart, chicken neck, liver, fat of gizzards, chicken feet, intestine, and other waste offal which may go to rendering plant.

Transporting capacity: 13500-200000 BPH

The max. material size for transport: 50-110mm


Products features

This items can work together with automatic Eviscerator, where the eviscerated intestine directly drop into pump system, and transfer to viscera processing room, which save labor working; And reduce the second time pollution for floor; The material is transferred by pipeline to any place of eviscerating room.


No need client separately arrange air source.


The transport length is up to 80 meters, the pump head is 4.5meters



Matters needing attention

1. It is forbidden to install valve at the outlet of pump


2. Checking the lubricating oil of reducer each three months

3. The ambient temperature of where pump working is not more than 40℃, the motor working temperature is not more than 75℃

4. If the transported material has precipitated crystallization and solidified, the pump needs to be cleaned in time after use.


The fully automatic poultry processing line including live bird reception machine such as live birds crates stack and destack machine, transporting conveyor,crates washer, poultry slaughtering unit of chicken water bath stunner, automatically killing machine, feather plucker, scalder, head cutter or puller, chicken hock cutter, shackle washer and automatic conveyor line transfer to Chicken evisceration unit of Chicken evisceration machine such as opener, vent cutter, eviscerator, cropper, neck breaker, chicken inside and outside washer, and then transfer to Chicken pre-chilling unit of Water chilling or Air chilling system, if the final product is whole bird will go to packing direct after chilling, if have cut-up parts, will processed by chicken cut-up machine, the chicken by-prdocuts is processed by its handling equipment, like for gizzards of gizzard de-fatter, peeler, cutter, after packing products will sent it to Chilling room , blast freezer , and transfer to cold room for storage.

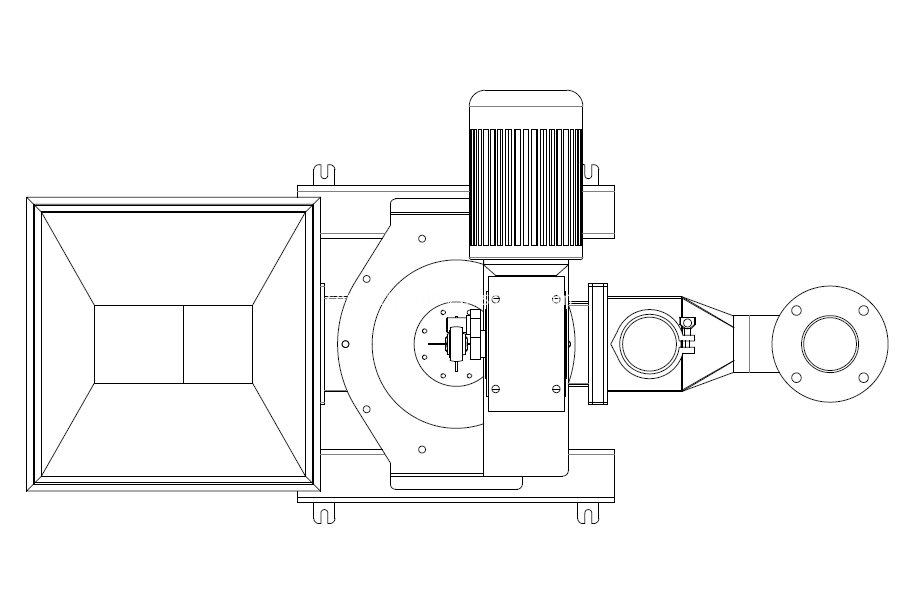

offal pump1




offal pump2


offal pump3





Connect Group For Poultry Project

 TURNKEY complete poultry project provider ,whole chicken business package solution for all clients. CONNECT Group is one of the leading poultry project package solution provider, the products and services including all the chicken field, start from egg hatchery, breeders raising, chicken parents raising, broiler house raising, broiler cage system, layer cage system, poultry processing equipment, fridge, rendering equipment for both poultry and animals waste. Our group totally have seven companies, which including one poultry processing equipment manufacture, two rendering equipment manufacture, one broiler equipment plant, one fridge equipment construction plant, one trading company which responsible for marketing and Import and Export, and one Industrial company, we also cooperate with Netherland poultry processing equipment supplier JM to build fully automatic poultry processing plant, which covers the shortage of fully automatic Evisceration and cut-up equipment in China market. CONNECT high quality performed equipment and experienced installation team, good after services system achieve a high quality poultry project for all clients. Equipment quality is the soul of the our company, Innovative is power for us constantly growing, good after services is the guarantee for quality project we make, feedback from clients help us growing self-improvement,Affirmation from clients bring us great proud of our work. CONNECT have the qualified products certificate to different countries in the world, UL,ASME, SONCAP, CE CONNECT exclusive service is project feasibility study, project finance which start from 4 million US Dollars which is up to 85% of the whole project equipment investment, project management. Join with CONNECT to build your quality chicken project. CONNECT looking for the qualified distributor who works in chicken field and understand the chicken farm project to build local selling base in different countries. If you are interests join with us pl sent email to us at support@slaughther-machinery.com for further application. CONNECT successfully build many projects in more than 30 countries worldwide, the projects scale from small to millions US dollars. CONNECT Project world: 1.Poultry raising Complete turnkey project including pre-fabricated house, equipment, installation,Management. 1.1 Broiler shed - ground, on net, cage system raising with complete equipments 1.2 Breeder and Grad parents shed -- with chain feeding system, drinker, .... 1.3 Hy-Line cage system --Pullets and layers farming in Battery cage system, or H cage system , with complete feeding, drinking, ventilation,egg handling, manure handling system 2.Poultry processing Equipment Packing solution for building, all processing equipments, Slaughterhouse- Full automatic and semi-automatic with different capacities, from 500 BPH to 12000BPH Fridge ----- Blast freezer, cold room, freezing tunnel, spiral freezer for slaughterhouse use Rendering equipment- Rendering not only waste from poultry, but also for animals, rendering poultry wastes, animal wastes of hog, cattle, sheep,blood,... Other type of animal carcass into high protein meal which as the additive for different kind of feed.
